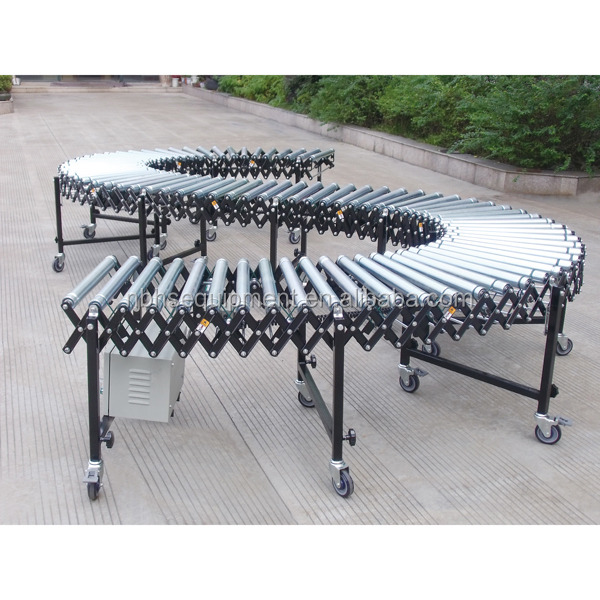

Oil Resistant Motorized Telescopic Roller Conveyor , Conveyor Belt System

                        Motorized telescopic roller conveyor, conveyor belt system

Flexible motorized roller conveyor is an extendable powered automatic roller conveyor with controllable conveying speed and adjustable supporting leg height,Having enough power supply by one mini motor per section,it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,dock,etc.

Application

In addition,it can be applied to such situations as production-packing line,temporary conveying line and goods distribution line.It satifies the easy,quick and efficient goods delivery, meanwhile,it can be used to loading and unloading truck,trailer,van and container,as long as there is flatform in load place;

1.This item can extendable ,retractable and bendable,it can take curve flexibly even in zigzag narrow aisles;

2.As two row roller have gaps,so only flat bottom items like carton,box can be conveyed;

3.Max load capacity is 40kgs/m;

1.Reduce labor,improve work effiency and save company cost;

2.Offer you the lowest price and high quality product;

3.With 10 years OEM & ODM experience;

4.With professional technical team;

5.One year warranty,spare can be free offered during this time,after you providing specific problem picture;

1. Φ50mm galvanized roller conveyors are driven by high quality O-shape belt(SIEGLING brand from Germany)

2.There is a transition wheel between two rollers;

3.Curved joint plates with better figure and load;

4.Each set equipment has one hand shank in the end, that can prevent conveying goods fall off;

5. The leg can be adjusted height through adjusting screws,adjustable range is 27.56''~39.37''(700~1000mm);Castor uses universal wheel with brake,that will more portable to move and more stable work;

6.Each section is equipped with one independent CE verified motor (Power is 60w ,STS brand from taiwan);

7.Each set equipment controlled by one independent electrical box with emergency stop.voltage is optional(standard:220V single phase);

8.Two sets same equipment or different equipment can be connected through hook,that would extend length,so that conveyor can reach to goods in your warehouse and dock;electrical parts can be connected by air plug;

9.Rubber roller conveyor also can be offered from us;

Our service

1.We will offer you excellent quality and the lowest price;

2.Goods will be delivered in a timely according to promise;

3.Spare partswill be offered when shipment;

4.There are problems in the machine during warranty,we will offer solution, technology

 and relative accessories until problem be sloved.
